Module 1 Examples: Introduction + Warm up

Coverage

· Github

o Branch/Fork

o Learn that to save a Unity Project, you only need the following four folders

§ Assets, Packages, ProjectSettings, UserSettings

§ There is no reason to push the other folders to Github (or to submit them), e.g., all of these can be re-loaded when Unity editor starts your project: Library, Temp, Logs, obj, etc.

· Basic

o Open and work with the Unity editor

o Setup for 2D camera, including setting world size

o Build to EXE and WebGL

o Hosting of a WebGL game

· User Interaction

o Polling of keyboard states

· Unity Objects

o Work with textures, creation of 2D sprite objects

o Attach Scripts (mono-behavior objects)

o Work with the Transform object to modify object position

Unity: Download and install Unity 3D. Refer to this link for Unity installation help. Take note of the version I am using, for this class, I do not see any reason to update to newer version. Note, after you choose a version do not change/update for the rest this class! Updating software versioning during a project is a major cause for project delay. Something to avoid at all cost.

On-line tools:

· Hosting a web-page: (in Part-2) you will have to host Web-GL builds for your assignments/projects. Here is a free and convenient way to host your own web-page:

o Via GitHub: https://pages.github.com/

Git and Github:

· At the very minimum, you should fork off the provided link so that you will know when there are changes.

· Now, create a fork and pull the source to your local machine.

· DO NOT start Unity, instead open GitHub folder via your explorer

· Observe: the Unity project folder 1.BasicSimpleProject

o There are five subfolders: Assets, Packages, ProjectSettings, UserSettings, and EXE

o You only need to pay attention to the Assets folder.

§ You should/will keep all of your created resources under this folder

o The EXE folder is the build result of the project.

o The other three folders are to keep track of the state of your Unity editor.

· Learned: Before submitting source to your programming assignments, you should navigate to the project folder and remove all useless folders, e.g., Temp, Obj, Library, Logs, Builds.

o Warning: always keep backup copies. If you accidentally removed files/folders you need, you must have a way to revert your changes.

· Observe: Now go ahead and open 1.BasicSimpleProject with Unity3D. Notice that after the project is opened, there are many new folders created including: Library, Logs, Temp

o None of these new folders are necessary in saving/retrieving your work.

o Although, these folders speed-up Unity startup time, please do NOT submit these folders and do NOT push the contents of these folders to GitHub.

§ If you are using the free version of GitHub, the Library folder may be too large to push and will lock up your repo.

Examples for Module-1

Basic Simple Project: start this project and

Open the Scene:

Look at the Project panel (WindowsàPanelsàProject)
Notice: Assets and Packages folders, these are exact views of the file system that we have examined via the explorer.
Click on Assets, and then Scenes
Double click on ClassExample: this is our initial scene (level)
Make sure to work in 2D space by clicking on the 2D option located in the top-left of the Scene window

o The many editor windows

§ Scene: for editing

§ Project: we saw that keeping your stuff

§ Hierarchy: Examine your entire scene (all objects are listed here)

§ Inspector: Examining the details of the selected object

§ Game: for playing, try it (click on the Play button)

§ Be careful: confusion between Scene and Game Windows, look at the background color!

o Configure the editor

§ Drag the tab of the Game window, you can detach the window!

§ Put Game and Scene windows and side-by-side

§ Scene Window: make sure you can see the camera boundaries

§ Re-size the Game window, notice how the camera boundaries in the Scene window updates to match with the aspect ratio of the Game window

§ Leads us to talk about the Camera.

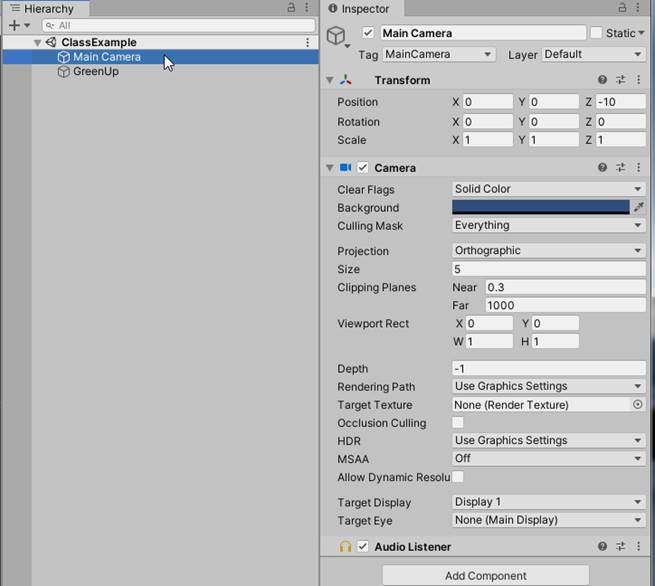

o 2D Environment: Main Camera setting

§ Click on the MainCamera object in the Hierarchy Window and refer to the Inspector Window (both of these windows can be opened via: WindowàGeneral)

§ Go into 3D mode, and see that the “Camera” defines a rectangular cube in the world. The content of the cube is shown in the world

1. Alt-Left-Mouse-Button: to tumble the 3D editor camera

2. Middle-Mouse-Button scroll: to zoom in/out

3. Click on the manipulator button to active the displacement tool, notice the rotate, and the scale tools

§ Notice the “Transform” values in the Inspector, in particular, the Position. That is the position of the Camera. Try changing it!

1. Move the camera using the displacement tool (click on the arrows) or

2. Type values in the Transform.Position x/y/z

o Initial camera settings:

§ Position: (0, 0, -10)

§ Rotation: (0, 0, 0)

§ Projection: Orthographic

§ Size: 100 (this is half the world vertical size, from the middle of the screen to the top of game window)

§ Clipping Planes: Near (0.3 is good). Far: 1000

§ Now, our world:

§ +-100 in height (notice the total vertical size is actually 200)

§ Left/Right is X (transform.right is the unit X-vector)

§ Up/Down is Y (transform.up is the unit Y-vector)

§ transform.forward: is the z axis direction.

o To zoom into the game camera (or any selected object):, select "Main Camera" (from Hierarchy window):

§ GameObjectàAlign View to Selected (or simply double click on the object in the Hierarchy window)

§ Remember, middle mouse button scroll to zoom

· Textures (fancy name for images):

o Drag any image into the Project folder (NOTE: will copy the image over to the project folder)

o I created the Textures subfolder and dragged GreenUp into the subfolder.

o Make sure the Texture Type è Sprite (2D and UI)

o Note: the Pixel per Unit setting. E.g., a 1000x500 image, with pixel per unit setting of 100, will appear as a 10x5 object.

· 2D Sprite Objects:

o Most (if not all) of objects we work with will be Sprite (2D and UI) objects.

§ The "Arrow" is a 2D Sprite

o GameObjectà2D ObjectàSprite

o Drag the texture from Project/Assets/Textures to SpriteRendereràSprite

o Make Arrow size 10x10 (otherwise, you can't see it ... 1x1 can be difficult to see)

§ Note, z-size is always 1

o Alternatively,

§ You can simply drag the GreenUp texture into the Scene Window

· Size of the visible world (of the Game window)

o What is the height of the Game window?

§ NO! not in pixels, but, object’s coordinate (World Coordinate)

§ Try changing the GreenArrow Transform.Position.y to 100, what do you see, why?

o What is the width of the Game window? [Try changing the size of the Game window and see the camera boundary size change!]

§ How can we find out?

§ Need to know the Game window pixel resolution and compute aspect ratio!

· Editor vs Game mode

o Editor mode: typical editing

o Play mode: when the game is running in the editor

§ Nice: you can continue to make changes via the editor

§ Warning: all changes will be lost after Play mode exists!

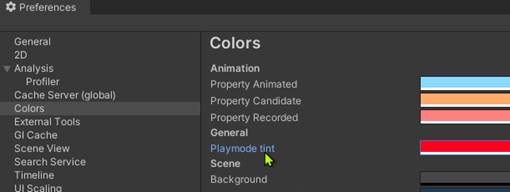

§ Recommendation: set up hint for yourself: EditàPreference: Look for Colors and set the Playmode tint to remind yourself.

· Build your game: make sure you know how to build

o To a PC EXE where you can download, unzip, and double click on EXE file and run.

o To a WebGL where you can run in your browser. (Make sure to read at the bottom of this document on WebGL Configuration, you may run into build errors)

§ Notice, it takes a LONG TIME to build WebGL

§ Make sure you learn and practice how to host your own unity web GL game.

· Learned:

o Open a Unity Scene

o Set 2D Camera and the size of the visible world

o Create new textures for 2D Sprite Objects

o Manipulate 2D Sprite objects via the editor

o Unity editor observations, Key Windows:

§ Scene: Interactive editor window

§ Hierarchy: Listing of all objects in Scene

§ Inspector: Details of current selected object

§ Project: Convenient view into the file system for working with resources

§ Game: What is visible through the MainCamera in the Scene

§ Console: Error and status messages show up here (Note on convenient settings: Clear on Play, and Collapse)

o Editor vs Play mode: and play mode changes are NOT saved!

Entity-Component-System (ECS) Architecture and Unity: Conceptual understanding of the Unity engine

· Entity è GameObject

· Component è Components (e.g., Camera, Sprite Renderer, your script)

· System èThe organization and protocol provided by Unity, e.g.,

o Calling sequence of components: Constructor(), Awake(), Start(), and continuously call Update()

Scripts on GameObjects and Keyboard input:

To add a script to an object:

Inspector Window: Add Component
Drag a script file onto the inspector
Programming Model: Entity-Component-System

A script is an instantiated MonoBehavior object, stored as a component on GameObject

MonoBehavior objects:

Awake()/Start(): to initialize your object. Awake() is guaranteed to be called before any of the Start().
Update(): called once per frame.

GreenUp object has a GreenArrowBehavior script/component

Script file: Project/Assets/GreenArrowBehavior.cs
Double click to open your IDE to examine the file

Scene vs Game Windows

Scene Window: for editing
Game Window: what your player will see

Run the game (the Triangle button in the middle of the editor):

WASD: to move the green arrow around

Verify top of the screen is y=100

With GreenUp selected, run and examine the Inspector

What is the width of the world and why?

Changes during the game is not saved!

With the game running, select the GreenUp and delete it!
Quit game to see the object returns

Unit of the world:

Independent from pixels!
Defined by the Camera’s Size
How do we estimate “speed” (displacement / unit-time)?

Debug: please refer to Debugging on the Unity help page.
Learned:

How to add scripts (behaviors) to GameObjects
ECS and Unity architecture
Scripts

Programing model (ECS) an instantiated MonoBehavior attached to GameObject as a component
Run time protocol: Awake() of all objects called, then Start() of all objects, then, one Update() called per frame

In the editor: when game running, changes are NOT SAVED!!

*** NOTE THIS ***: do not waste time editing your game while the game is running!!
You will waste time on this, and you will learn!

In class self-exercise:

Follow the instructions and practice what we have learned today.
My solution is available at the end of the document

=================
