Module 3 Examples: Autonomous Behaviors and Tilemap

Link to GitHub

Coverage

Concepts you will explore and understand include

· The lerp function: gradual rotation and chasing

· Simple implementation of a finite state machine

· Randomness and simple examples in games

· Sprite sheets and sprite atlas: for efficiency loading and animation

· Keyframe and Sprite animation

Unity specific skills you will be exposed to and begin learning include

· Sprite Editor: extracting individual tiles and sprites

· Animation Window: defining keyframe animations

· Animator: defining animation states, transitions, and, finite state machine

· TilePallete and Tilemap: for creating (by painting) levels

1. Gradual Rotation and Chasing
• Run Behavior:
• WASD: move the egg
• UpArrow chase after the egg
• TurnRate: (be careful, slider bar may keep focus of mouse, click somewhere else to un-focus)
• 0 does not turn towards egg
• 1 always point at egg
• 0 < rate < 1: turns gradually from very slow (values close to 0), to very quick (values close to 1)
• Egg: WASD_Movement: trivial behavior
• GreenArrowBehavior:
• Public variables
• TurnRate: connects to the slider
• Target: connects to the egg
• PointAtPosition(): function
• Pointing the transform.up towards any given position
1. Incremental rotation of transform.up to align with V
2. Watch out, if transform.up and V are pointing in perfect opposite directions, the turning does not work.
• Update()
• Calls PointAtPosition()
• Move in the direction of transform.up
• In game object movement consideration
• Easy: Direct control: you control the position and direction of object movement
• Less Easy: Indirect control: e.g., you control the velocity of an object
• Obey the rules of physics: Indirect control in the world with physics (gravity and potentials for collisions), you configure the physics to control the object movement
• Follow your own algorithm: No control: autonomous (as in this case)
• Learned:
• Gradual rotation: Vector3.lerpUnclamped()
• The PointAtPosition() function
• Quite reusable
• In-game object movement considerations



2. Autonomous Movement with Randomness:
• Run Behavior:
• Watch the green arrow chases the egg, when gets close, egg spawn in a new position in the pinkish area
• SliderBar changes the pinkish area size (% of world bound size)
• N-Key: to spawn a new GreenArrow
• H-Key: to hide the egg
• Try: spawn 20 arrows, and then hide the egg, see a bunch of patrolling arrows?!
• Scene Setting
• Child: GameManager: empty game object for hanging the singleton GameManager
• TargetBoundBox (pinkish)
• This box is behind the green arrow (with larger Z-position values, the larger the Z the more behind).
• Be careful: camera settings only allows z values of up to 1000: MainCamera.Far
• GreenArrow: chases after the egg
• GameManager:
• Awake():
• Initialize must be done before GreenArrowBehavior::Start()!
• Has reference
• TargetBoundBox: to be scaled into the size user specified
• TargetBoundSlider: child of UI-Canvas, the slider bar
• GetTargetBound: computes the percentage of a given bound. Note the referencing of
• Camera.main: The Camera component on Main Camera
• orthographicsSize: half of the height of the world
• orthographicsSize * aspect: half of the width of the world
• GreenArrowBehavior:
• ComputeNewTargetPosition: a random target position within a given bound
• Vector.Distance(): Notice this function, convenient to use
• Learned:
• Compute the percentage of a given bound (GameManager::GetTargetBound())
• Random position in a bound (GreenArrow::ComputeNewTargetPosition())
• Distance between two game objects: Vector3::Distance() function
• Game object positions: z values are important
• Front is smaller z, behind/far is larger z
• SHOULD NOT change the z-value of an object during game play
1. May cause “flipping” rotation
2. E.g., change the z value of Target to e.g., 1.0f and observe arrow flips
• SliderBar callback function
• Efficient, only compute when there are changes
• Edited in the UI



3. Finite State Machine
• Run Behavior:
• Move the arrow with WASD
• Touch the plane to trigger fixed behavior

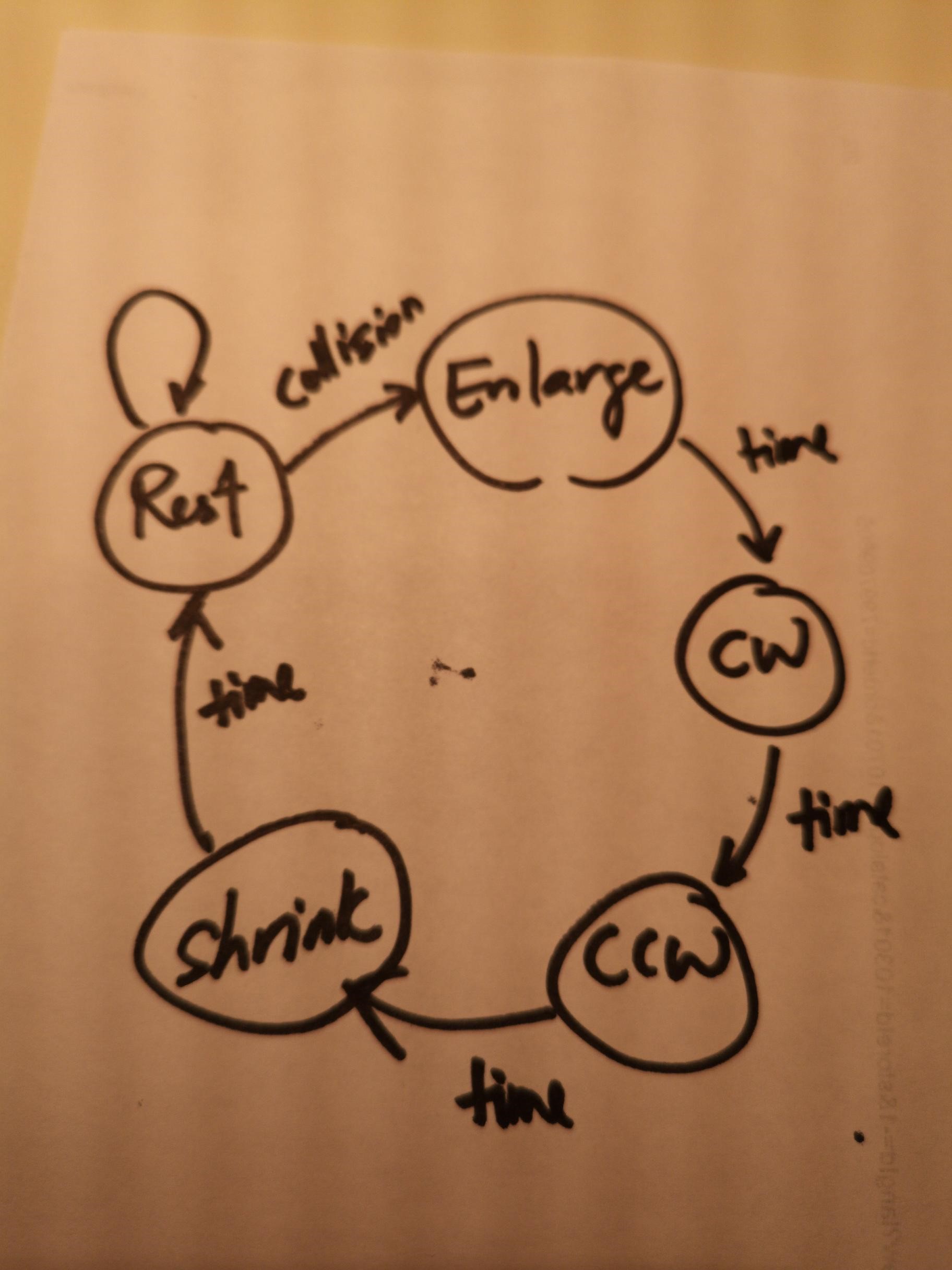

• Finite State Machine: Simple state on the Plane. Here is the state transition definition
• Normally, nothing, when collision
• enlarge for 120 frames
• rotate CW fast for 80 frames
• rotate CCW for 80 frames
• shrink for 120 frames
• return to resting
• Note: in our context, if an operation does not need time, it is NOT a state. All states, in the FSM needs more than one update() cycle.
• Implementation Keys:
• Draw the state diagram!!
• Instance variables for state definition and transition
• Enum for individual states
• Case statement in update()
• State service: Each state is a separate function!
• As states become complicated, they can be defined as instance of different classes (with shared base class)
• Organization
• Partial class (different files implementing the same class)
• Plane.cs and Plane_FSM.cs
• Each contains separate details!
• Watch out!! Incomplete (or unintentional) state specification
• Try moving the GreenUp to touch the Plane when it is changing!!
• E.g., when the plane has grown large, a new collision will trigger a brand new state cycle, causing the plane to continue to grow larger!
• What should be done to avoid? Well, when collide, check if current state is indeed in idle.
• Learned:
• Finite State Machine: important to
• Draw out ALL states, and
• Define all possible input and state transitions
• Implementation key: review the above!
• Relatively straightforward to define simple repetitive autonomous behaviors!
• C# Partial class: to help separate source code into different files for organization



4. FSM + Randomness
• Run Behavior:
• All planes cycles through states without going into resting
• Random enlarge and rotation periods (turn constants into variables)
• After a while, look rather random?
• GameManager: hanging off MainCamera
• Creates all the planes at startup
• Plane:
• Randomness: in the Start() function, sets the number of frames in scale/rotate states to be random
• Learned:
• Beauty and simplicity of random

§ Ease of expansion when well abstracted

5. Keyframe Animation + FSM
• Disclaimer: Animation is a large and complex topic, we will only cover the very basic
• Run Behavior:
• I: to trigger Angry
• D: to trigger size decrease
• Collide plane and Arrow: to trigger animation state change from Rest-State
• Arrow: Angry (after current run, when state is Rest)
• Plane: size decrease (immediately! Interrupting the state flow)
• Define Animation Clips: results of Keyframe animation: Will associate an “Animation Time Period” with a game object
• Select a GameObject from the Hierarchy window
• Window->Animation->Animation (to open the Animation window)
• Create any animation and you have just associated the defined “Animation Time Period” with the GameObject
• Create Keyframe animation:
• Default state: when “Animation Time Period” is zero
• Click to move the current-time-line
• Update the GameObject state (e.g., Transform values in the Scene window
• Click on “Add Keyframe” (or left-mouse-button->Add Key) to create new keyframe
• Scrub the current-time-line to see the defined animation
• Note: at the end of an animation, the animated attribute will always return back to the initial default value, even if the final state of the animation is different, they system will automatically return the attribute to the initial default: animation is a temporary deviation from the initial default.
• Organized as States in Animator where transitions between the States define a Finite State Machine for an object
• Animator (controller): controls a collection of States
• Tool for organizing the States as a Finite State Machine: all animations associated with a GameObject (e.g., a character)
• State: in the Animator as simple wraps of existing Animation Clips
• Transitions: detailed support for Transitions between States
• Solo/Mute check boxes: for debugging (only testing or mute this transition).
• Parameters: can define to control the states
• Bool: you must turn on/off yourself
• Trigger: a Bool, if you refer to it to cause state transition, system will turn it off (refer to Begin)
• Examine:
• Animation State: control over speed
• State transition: can be simple conditional (or control in script)

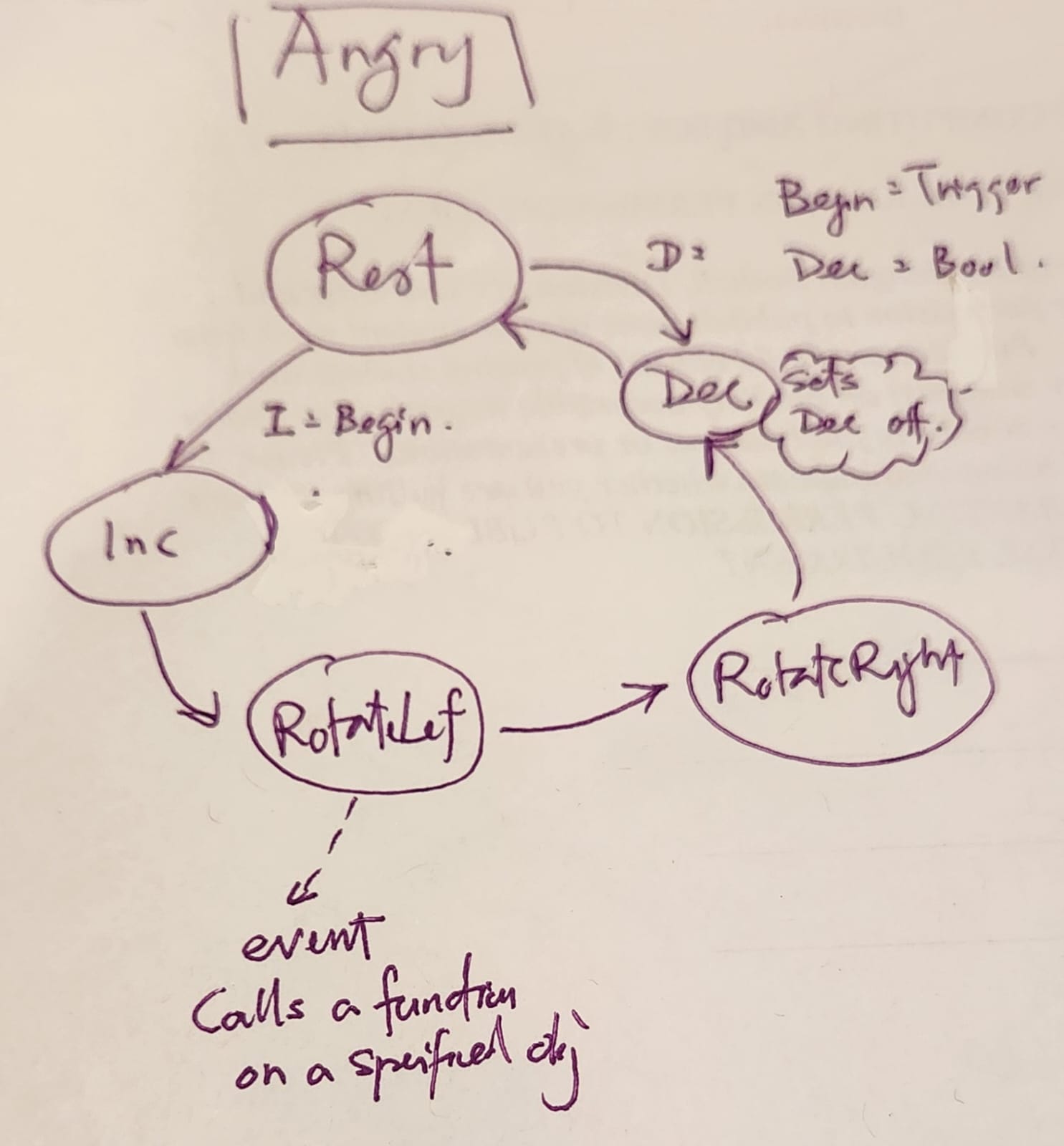

• Example: Here is my example states (Angry FSM):
• Parameter: Begin a Trigger to cause transition to IncSize
• Parameter: Dec a Bool (to show how it works), can be a Trigger
• Sharing: It is possible assign the Angry Animator to any GameObject
• Notice: Arrow and Plane have the same Angry animator controller
• Exhibits identical animation from transformation changes
• EXCEPT: with Animation Event call back, the object needs to have an GreenArrowBehavior
• Scripts:
• ArrowBehavior:
• OnTriggerEnter: starts Dec animation, and force Plane into DecSize state
• FromAnimation(): to receive the event from RotateLeft clip
• PlaneBehavior:
• Defining FromAnimation() DOES NOT help: RotateLeft calls ArrowBehavior::FromAniamtion(). The binding is with ArrowBehavior!
• Angry State Behaviors:
• RestState: monitor keyboard to decide who state to transition to
• DecState: switch off Dec if true (this can be a Trigger)
• Learned:
• Basic concept of Keyframe Animation and
• When animation is defined, an object has a Animation-Time-Period attribute
• Animation should be considered as a deviation-cycle form initial value, will always return back to the initial value
• Unity how to:
• Animation Window (to create Animation Clips): create animation clips for a GameObject
• Animator (to create Finite State Machine)
1. Create empty states and state transitions
2. Create and access parameters to control state and transitions
3. Interrupt current state and force into another state (CrossFade())
• Can share animator controller (when only controlling transform), if animation events are defined trickier to share
• Note:
• When the Arrow is in the Angry cycle, collision response (Another Angry run) will only occurred AFTER the end! This is contrast with the Plane’s response: via CrossFade(), of going into the response mode immediately.
• It is possible to create a Finite State Machine with Animator even if there are no animations involved. I can see both plus (convenient, less coding) and minus (messy UI workflow, rigid interface). You can decide what you want to do.
• WATCH OUT!!
• Attributes under Animator control are off-limit to the rest of the components. E.g., if you control the rotation of an object, then, you will not be able to control the rotation of the object from anywhere else (e.g., user will not be able to control the rotation of the same object!)
• References:
• Unity manual pages: (how to use the Editor)
• Overview: https://docs.unity3d.com/Manual/AnimationOverview.html
• Animation window: https://docs.unity3d.com/Manual/AnimationEditorGuide.html
• Animator: https://docs.unity3d.com/Manual/class-AnimatorController.html
• Unity API pages: (involve writing scripts)
• State Machine Behavior: https://docs.unity3d.com/ScriptReference/StateMachineBehaviour.html
• Animation State: https://docs.unity3d.com/ScriptReference/AnimationState.html
• Animation Event: https://docs.unity3d.com/Manual/script-AnimationWindowEvent.html


6. Sprite Animation
• Textures in unity: Sprite Mode
• Single (simple image of an object)
• Multiple (sprite sheet, sprite atlas): saves load time and/or define animation
• Organization of an animated spritesheet
• How to slice: Auto (optimized) vs Fixed Size (for animation support)
• Unity How to: Slicing Sprite Sheet (Atlas)
• Import Sprite Sheet (Type: Sprite (2D and UI))
• Select the Sprite
• Sprite Mode èMultiple
• Invoke the Sprite Editor, Click on Slice è Apply
1. You may have to install the Sprite Editor using PackageManager
2. Search for “2D Sprite” to install under “Unity Registry”
• Run Behavior:
• I – to toggle Her idle animation
• Transition to idle is immediate
• Transition from idle takes a while about 5x idle cycles
• HeroKnight animation is RICH! (don’t know all of them)
• E: kills the hero
• LMB: attack
• There are much more!!
• An Example:
• Three spritesheets: HerPlayer, HimPlayer, and TinyTown
• Slice into individual sprites
1. HerPlayer and HimPlayer by FixedSize (grid-cell count)
2. TinyTown with Auto detection in size
• Drag individual sprite to create GameObject with no animation: drag from TinyTown Tilemap_48 and Tilemap_49 objects are dragged from individual Sprite elements (elements 48 and 49 from TinyTown)
• Drag entire spritesheet to create GameObject with an Animator: e.g., HerPlayer. (Rename the create Animator in the Asset window), repeat for HimPlayer
• Share the created Animator: Unfortunately, this cannot be done! Association with Sprite is static
• Try it, replace the HimPlayer’s Animator control with Her_Entire_Sheet!
• Painfully created Her_Idle animation clip + state
• Lesson learned: this stuff is challenging!
• NOT done: if we want to support interactions, we must define colliders for each of the sprites! Here is a short tutorial on what you can do (create associated keyframes for the collider): https://www.youtube.com/watch?v=ls1WxW1zXNc
• Recommendation:
• Find free character assets (most teams do), modify for your needs. MAKE SURE to cite!!
• Hero Knight is an example from Unity Asset store https://assetstore.unity.com/packages/2d/characters/hero-knight-pixel-art-165188
• Learned: some basic Unity how to
• Work with sprite sheet: slice into individual tiles with Sprite Editor (remember to set the mode to Multiple)
• Drag to create GameObject with default sprite animation
• Create simple sprite animation and support animation state transition
• Good animation is tedious, and more importantly, challenging!
• References:
• Sprite Editor: https://docs.unity3d.com/Manual/sprite/sprite-editor/sprite-editor-landing.html
• Credits:
• TinyTown: https://www.kenney.nl/assets/tiny-town
• Kenny: https://www.kenney.nl/assets/platformer-characters
• Hero Knight: https://assetstore.unity.com/packages/2d/characters/hero-knight-pixel-art-165188


7. Tile Palettes and Tilemap
• What:
• Create a level by painting it: three main topics
• Tile sprite sheet: this is like the color, choice of colors to be used in a painting
• Tilemap: this is like the canvas (target to be painted on)
• TilePalette: this is like the color to be painted on a canvas, in this case, a “color” is a selected tile from the tile sprite sheet
• Run Behavior:
• WASD and Space to control the HeroKnight
• Tile Sprite sheet:
• Turn a tile sprite sheet into individual sprites (usually with Auto Slicing)
• Remember: the size of each sprite element:
• Controlled/refined by Texture Pixels Per Unit
• TilePalette:
• Make sure TileMap packages are installed
• Windows->Package Manager: make sure “2D Tilemap Editor” and “2D Tilemap Extras” are installed
• To create TilePalette: (Windows -> 2D->TilePalette) https://docs.unity3d.com/6000.0/Documentation/Manual/tilemaps/tile-palettes/create-tile-palette.html

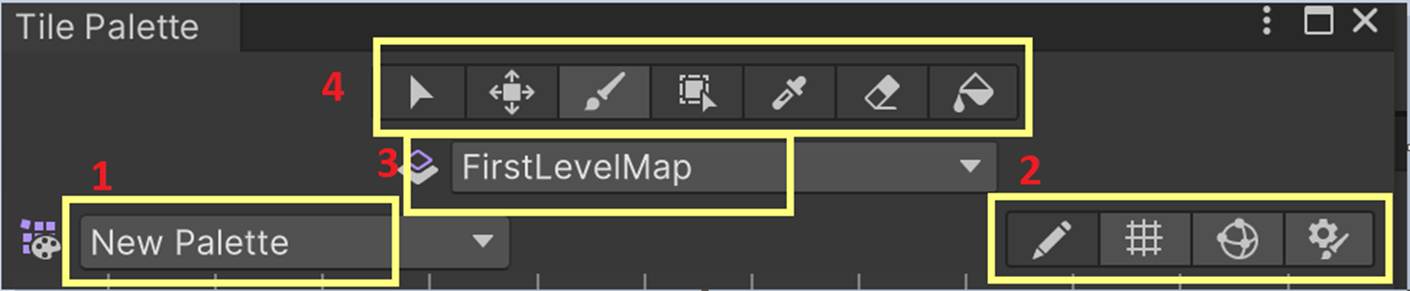

• Remember, this is for painting onto the Tilemap (to be discussed next), here is the UI
•
• Operations for this palette
• 1: Name of this palette (you can create many)
• 2: Operations to perform on this palette: To edit, grid on/off
• Operations for the Tilemap:
• 3: Which map to draw on
• 4: Mode of drawing: selecting area, moving area, select brush
• Tilemap:
• Unity help page: https://learn.unity.com/tutorial/introduction-to-tilemaps
• One grid system with many layers of maps
• Idea: each grid is to contain one tile-sprite (again, size of the tile-sprite is specified by the pixel-per-unit) attribute on the original tile sprite sheet texture.
• Example paint operation:
• Tile sprite sheet setup: Drag in your tile spritesheet, make Multiple, slice into individual tiles
• Open TilePalette, create the new palette using your tile sprite sheet
• Create a Tilemap object (will create with a Grid and one Map child): name the child Background
• Refine tile pixel size (this is what I do): paint a tile in the grid, adjust the tile sprite sheet Pixels Per Unit (or grid size) until each tile covers exactly one grid.
• Now, paint the Background
• When done, get ready to paint platforms (with colliders)
• Firstly, disable Background (make it inactive)
• Create a new tilemap (RMB over Grid-> 2D Object->Tilemap->Rectangular)
• Name the new map as Platforms
• In the TilePlatte: select Platforms as target to work on
• Now, paint the platforms
• Repeat for MovableTiles map
• Collision support:
• Idea: separate collide-able tiles in separate layers of maps. In our case, the Platform map.
• After drawing, you have the option to switch on collision for individual maps by adding TilemapCollider2D component: (Add Component->Tilemap->Tilemap Collider 2D)
• Note: all defined tiles in the layer will have Collider2D defined and can detect collision
• For more accurate/smooth collision support: on MovableTiles
• CompositeCollider2D (under Physics 2D): can add a CompositeCollider2D to the Tilemap’s map to smooth out issues involved with too many colliders
• Here is a short discussion on the issue: https://www.youtube.com/watch?v=Z0O59mWbq1E
• Note:
1. A RigidBody2D component will be automatically added to the map, you probably want to change the type to Kinematic.
• The TileMapCollider2D::Composite Operation: Merge
• Note:
• Remember: Collider2D size can be adjusted (e.g., to be larger or smaller than the actual object)
• For collision to occur, one of the parties must have RigidBody2D defined (everything learned about collision in Unity applies here). So, if hero wants to walk over the tiles, the Hero should have RigidBody2D (and at least one Collider2D) defined. Recall:
1. Dynamic: will be move according to Physics (try setting Gravity Scale to 0)
2. Kinematic: only for collision but cannot response (no movement after colliding)
• Player/TileMap Layering (front/back): https://www.youtube.com/watch?v=rVBzTKvoStk
• Control: All object’s Renderer->Additional Setting: Order in layers
• Layers: 2: HeroKnight, 1: Platform, 0:Background
• Learned: again mostly Unity tools
• TilePlatte: how to create, how to paint on different maps
• Tilemap: separate maps for separate characteristics, including colliders
• Collisions: probably always use Composite Colliders for platformers
• Credits:
• TinyTown: https://www.kenney.nl/assets/tiny-town
• Kenny: https://www.kenney.nl/assets/platformer-characters
• Hero Knight: https://assetstore.unity.com/packages/2d/characters/hero-knight-pixel-art-165188
